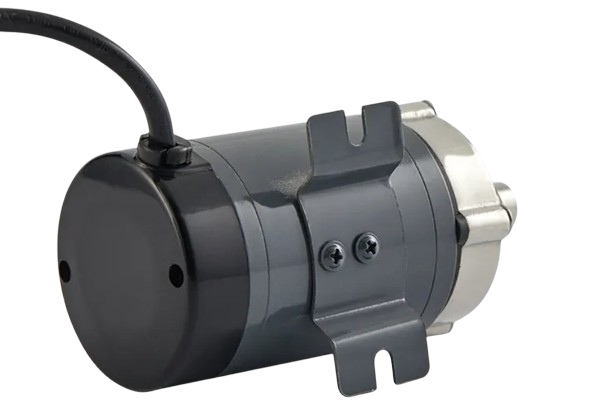

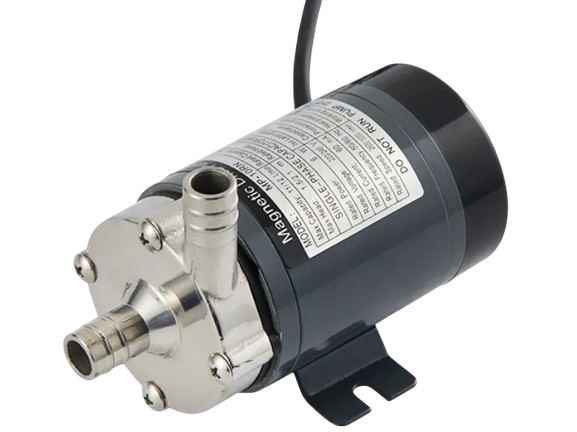

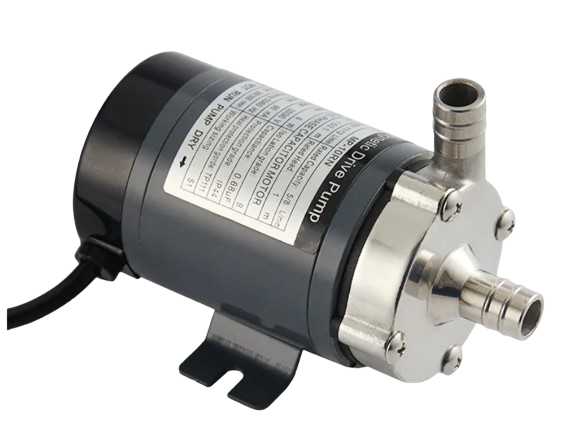

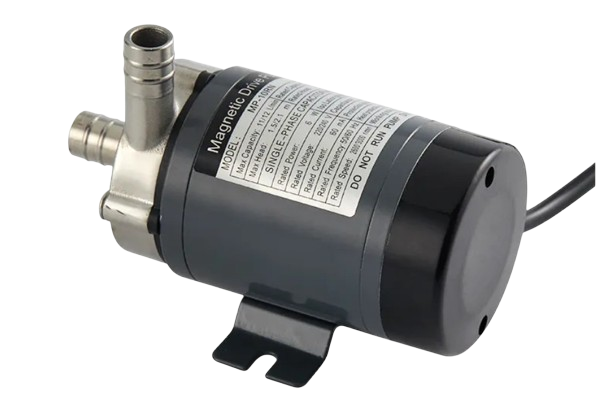

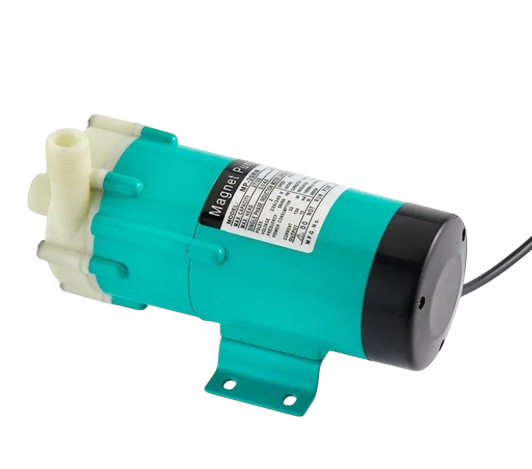

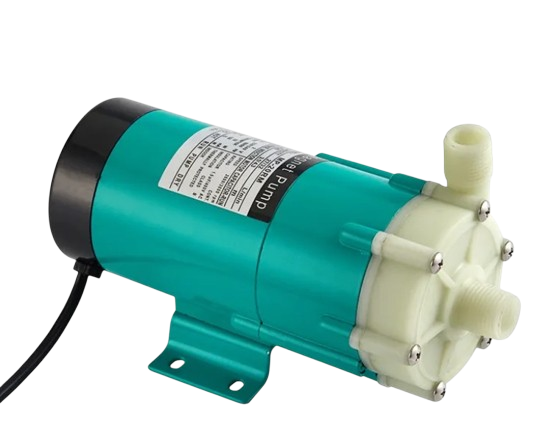

Magnetic Drive Pump
Magnetic drive centrifugal pumps—often called mag-drive pumps—represent a significant advancement in fluid handling technology. By eliminating the traditional mechanical seal, they provide a leak-free, hermetically sealed solution, making them the ideal choice for transporting hazardous, corrosive, or high-purity liquids.
Technical Specifications
Flow rate
Up to 120 m³/hr
Maximum head
Up to 65 meters
Temperature Range
-30°C to +200°C
Maximum Viscosity
Up to 200 cSt
Available materials
PP, PVDF, ETFE, SS316, Hastelloy
How an Magnetic Drive Pump Works
Unlike standard centrifugal pumps which use a direct shaft connection that requires a mechanical seal, mag-drive pumps transfer power through a balanced magnetic field.
Key Components and Principle:
Outer Drive Magnet: This ring of powerful magnets is connected directly to the motor shaft.
Inner Driven Magnet: This matching ring of magnets is attached to the pump’s impeller and is sealed inside the fluid chamber.
Containment Shell/Isolation Sleeve: A non-magnetic, fully sealed shell separates the outer magnet assembly from the inner magnet assembly and the pumped fluid
Why Choose Our Magnetic Drive Pumps?
We offer high-performance magnetic drive pumps engineered for absolute fluid containment and total operator safety. By utilizing a synchronous magnetic coupling, our pumps eliminate the need for mechanical seals, providing a leak-free solution that ensures zero emissions and maximum environmental protection.
Key Features
Magnetic drive pumps are the industry standard for processes where even a minor leak could be catastrophic. Their sealless design makes them ideal for:
Chemical Processing: Safe transfer of highly corrosive acids (Sulfuric, Nitric, Hydrochloric) and aggressive alkalis.
Toxic & Hazardous Fluids: Handling volatile organic compounds (VOCs) and lethal liquids that require 100% containment.
High-Purity Media: Circulating ultra-pure water and chemicals in semiconductor and pharmaceutical manufacturing without contamination.
Surface Treatment: Continuous circulation of etching, plating, and pickling solutions in metal finishing lines.
Petrochemical: Handling flammable solvents and hydrocarbons where mechanical seal failure poses a fire risk.
Ready to Optimize Your Flow?
Get in touch with Yash Flow today for a consultation or a competitive quote.
